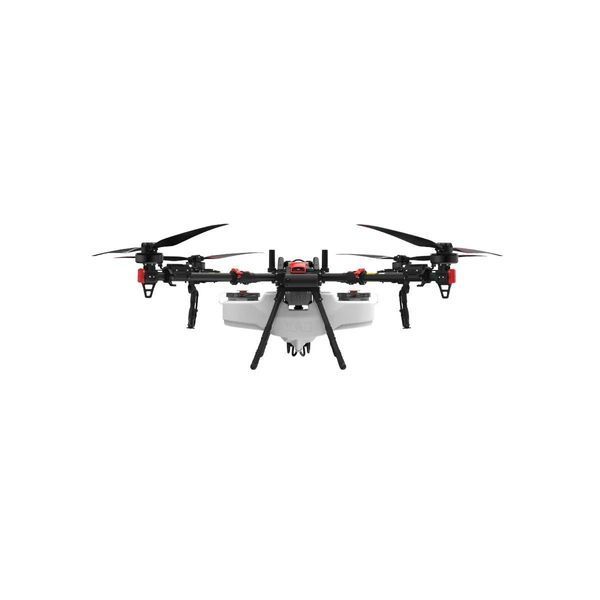

XAG P150 Max Agricultural Drone With Revospray 5 (09-007-00158)
It is positioned as a flagship “large-format” spraying platform in XAG's product lineup, emphasizing an 80-liter smart liquid tank, high spray flow, and sensor-driven automation for operation in broad-acre fields, orchards, and uneven terrain.
In sales channels, the aircraft is frequently offered either as a drone-only configuration (aircraft bundled with the RevoSpray 5 spraying system) or as part of multi-battery “kits” that add charging, cooling, and RTK accessories to support continuous work cycles. A common reference configuration includes theP150 Max with RevoSpray 5 (09-007-00158) as the core item within larger bundles.
Design and Features
Airframe and heavy-lift configuration
The P150 Max uses a quad-rotor airframe engineered for high payload operation and field durability, with published propulsion specifications showing four motors rated at 4850 W each and a foldable propeller system using carbon-fiber composite materials.
XAG markets the platform as capable of covering large areas by reducing refills and improving flight efficiency, citing an 80 kg payload capacity and a maximum flight speed up to 20 m/s in product messaging.
RevoSpray 5 spraying system
The RevoSpray 5 system is the defining payload for the 09-007-00158 configuration. Manufacturer materials describe:
-
80 L smart liquid tank
-
Dual centrifugal atomizing nozzles
-
Maximum flow rate of 32 L/min in the standard two-nozzle configuration
-
Optional four-nozzle upgrade that increases the flow rate to 46 L/min
The RevoSpray 5 design is presented as aiming for higher productivity per flight while supporting different application goals (coverage, penetration, drift control) through adjustable droplet parameters.
Sensing, autonomy, and precision positioning
XAG positions the P150 family around autonomous operation enabled by advanced sensing:
-
4D imaging radar obstacle detection, published as detecting obstacles along the flight path from 1.5 to 100 meters (P150 family feature set)
-
RTK-enabled hovering/positioning support is commonly cited in product literature and dealer spec tables as ±10 cm (horizontal/vertical), supporting repeatable flight lines and consistent swath spacing in precision application work.
Technology and Specifications
Since the "drone-only" and "kit" range Varies by dealer, the most useful approach is to separate the aircraft + RevoSpray 5 specifications from the operating sets. Published P150 Max specifications include: Number of Motors: 4 Nominal Power (Single Motor): 4850 W This data places the P150 Max in the heavy-lift segment of agricultural UAVs, where the powertrain reserves are designed to support large liquid payloads and stable flight at low altitudes. Manufacturer and reputable third-party summaries often cite: Nominal tank capacity:80 L Maximum payload (spray):80 kg Atomized droplet size range:60–500 µm Effective spray width:5-10 m Maximum flow:32 l/min(standard),46 l/min(with four-blade kit) nozzles) XAG also describes the pump and nozzle system from a reliability perspective (e.g., pump design and lifetime targets) as part of the platform's "always ready" positioning for seasonal peaks. While 09-007-00158 refers to the P150 Max with RevoSpray 5, it is typically integrated into kits that add batteries, chargers, and cooling towers. For example, the "Standard 7kW 6B2C" configuration Contains the same aircraft09-007-00158paired withsix batteries, two chargers, and battery cooling towers, as well as an RTK rover station and a smart controller. This structure reflects the fundamental reality of high-capacity agrodrones: daily power often depends not only on flight power but also on chargingpower and battery rotation. Over large areas, high-capacity drones are typically deployed at critical moments—for example, during pest outbreaks, fungicide application windows, or accessibility issues after rain. The P150 Max's 80L tank and high flow rates are designed to reduce refills and enable larger, continuous cleaning runs under appropriate conditions. Orchards and Dense Canopies XAG and industry coverage frequently frame the P150 Max as suitable for orchards and dense canopies, where droplet penetration and coverage can be challenging. The optional four-nozzle upgrade (46 L/min) is specifically promoted for thorough coverage in dense orchards. The P150 product family highlights radar-based obstacle detection and terrain-aware operation as a way to support safe flight around obstacles and across uneven ground—useful where ground machinery is constrained by slope, wet soils, or narrow access. For contractors, fleet economics often prioritize utilization: keeping aircraft airborne during daylight windows and minimizing turnaround between sorties. In dealer bundles that include cooling and fast-charging infrastructure, the P150 Max is positioned as a commercial tool intended for sustained daily output. High productivity per sortie: An 80 L tank and high maximum flow rate support larger treatment blocks per flight and can reduce operational overhead tied to refills and mixing logistics. Adaptability for different agronomic goals: Adjustable droplet size (60–500 μm) and multi-nozzle configurations allow operators to tune spray characteristics for different crops and application objectives, subject to label requirements and local regulations. Sensor-driven autonomy and safety support: 4D imaging radar (published detection ranges in the P150 family literature) supports obstacle-aware operation and reduces dependence on ambient light for sensing compared to vision-only systems. Scalable operations via accessories and kits: The same aircraft SKU (09-007-00158) is used as a building block within multi-battery kits, allowing operators to scale for longer workdays by investing in power infrastructure. It is a heavy-payload agricultural spraying drone configuration combining the XAG P150 Max aircraft with the RevoSpray 5 spraying system, centered on an 80 L smart liquid tank and high-flow centrifugal nozzle spraying. The drone flies planned routes over fields at low altitude, using onboard autonomy features and sensing to maintain stable operation. RevoSpray 5 meters liquid from the tank through pumps to centrifugal atomizing nozzles, producing droplets across a published adjustable range and delivering a high maximum flow rate, depending on nozzle configuration. It targets high-throughput crop protection by combining a large tank (80 L) with high spray flow (32 L/min standard; 46 L/min with a four-nozzle upgrade) and sensor-driven autonomy aimed at safe, repeatable operation across large areas and challenging terrain. Commonly cited benefits include higher productivity per flight from the 80 L tank, high flow rates for time-sensitive spraying, adjustable droplet sizing, and radar-supported sensing for obstacle-aware operation.Primary Aircraft and Propulsion System (Manufacturer Specifications)
RevoSpray 5 (manufacturer specifications and published highlights)
Operating Ecosystem: Batteries, Charging, and Cooling (Typical Kit Context)
Applications and Use Cases
Spraying for Large-Area Crop Protection
Uneven terrain and hard-to-access areas
Professional contractors and multi-site spraying crews
Advantages / Benefits
FAQ Section
What is the XAG P150 Max Agricultural Drone with RevoSpray 5 (09-007-00158)?
How does the XAG P150 Max work?
Why is the XAG P150 Max important?
What are the benefits of the XAG P150 Max with RevoSpray 5?
Summary
