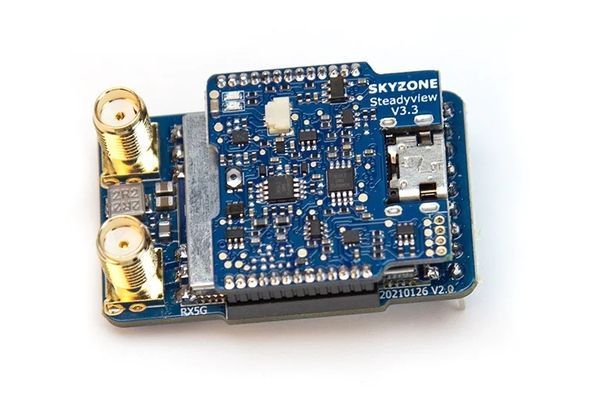

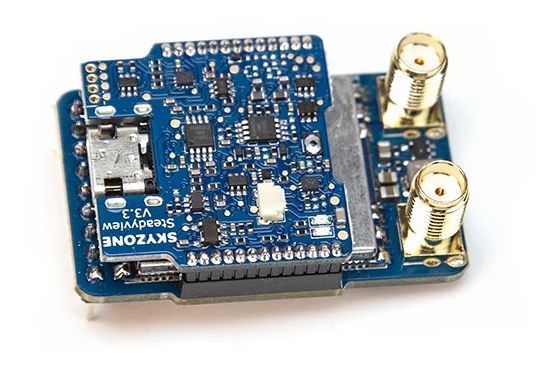

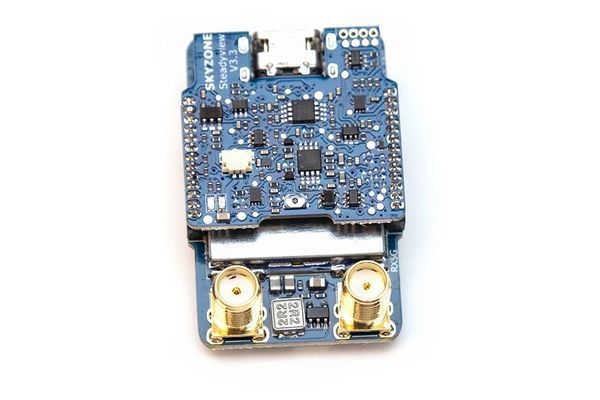

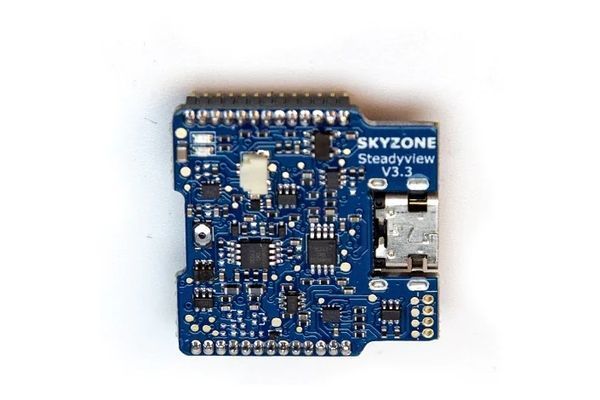

Skyzone SteadyView 5.8G 48ch Video Receiver V3.3. The Skyzone Steadyview 5.8G video receiver for FPV goggles. The receiver has two operating modes: Diversity and RapidMix. Diversity is the standard mode, in which the receiver selects the best signal from two antennas, reducing the risk of complete signal loss. When using RapidMix mode, the receiver combines the signal from both antennas, which makes the image more stable and clearer in challenging flight conditions. The receiver has a USB Type-C interface for firmware updates. All settings can be made in the user-friendly interface.

Skyzone Steadyview can be used as a second receiving module on Skyzone FPV video goggles to operate in Quadversity mode, which allows the use of two additional antennas to improve signal coverage.

Technical specifications:

• Frequency range: 5.3 ~ 6.0G
• Frequency grids: Boscam A, Boscam B, Boscam E, Fatshark, Raceband, Lowband
• Total number of channels: 48CH
• Sensitivity: -98dBm ± 1dBm
• Antenna port: 2 x SMA jack, 50 Ohm
• USB port: Type-C for firmware updates or powering the receiver
• Power: 5V at 380mA
• Weight: 20g

• Control type	Radio 5.8 GHz
  Power, V	5V, 380mA
  Output type	for FPV systems
