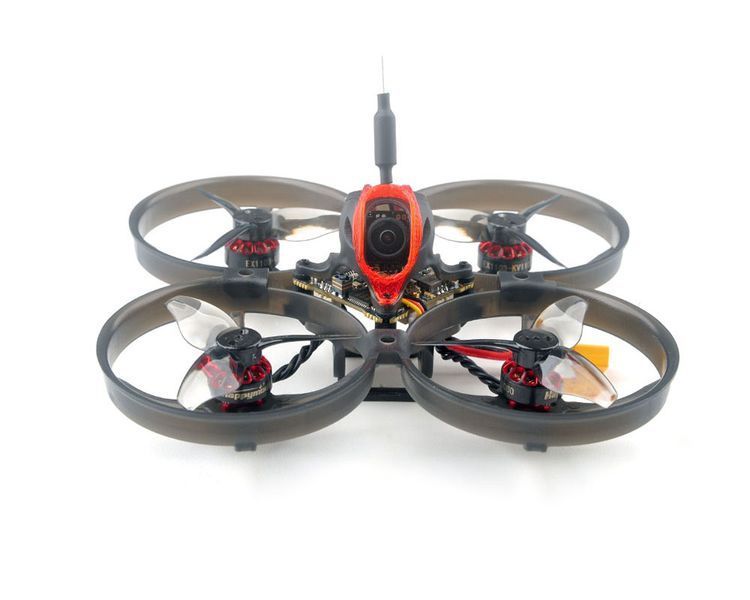

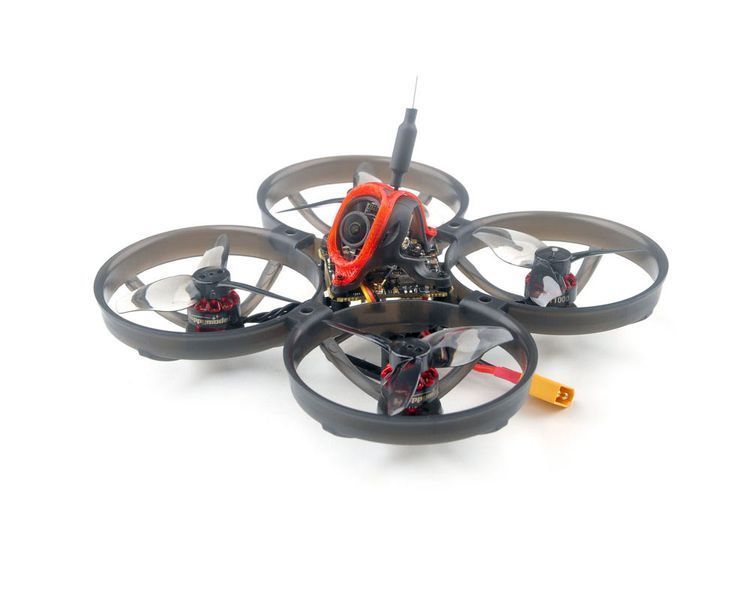

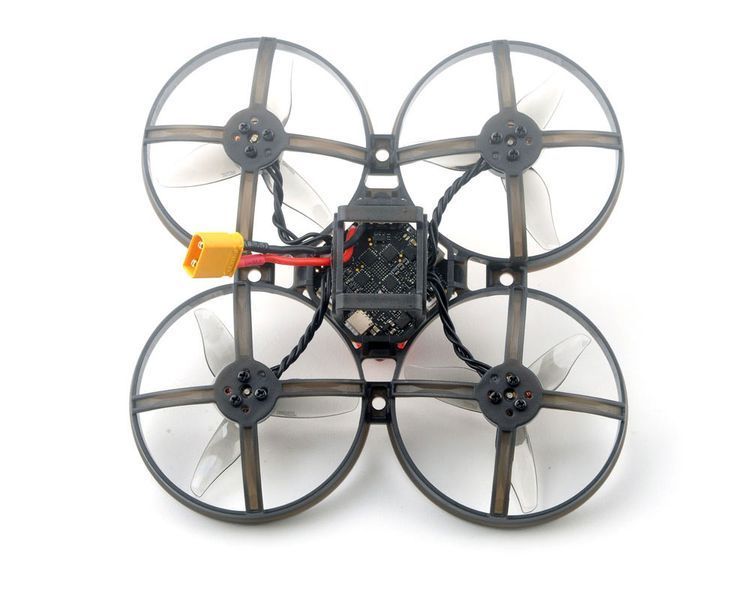

Happymodel Mobula8 PNP Quadcopter

Mobula8 is an 85mm drone that comes with powerful EX1103 KV11000 motors and Gemfan Hurricane 2023 three-blade propellers.

Happymodel Mobula8 PNP Quadcopter has great power and extremely smooth flight.

Features:

• VTX power up to 400mW
• EX1103 KV110000 motors
• CaddxFPV Ant FPV camera
• Smooth and powerful
• Compatible with 1S-2S Lipo/LIHV battery
• Recommended 2S battery 450mAh/550mAh/650mAh (not included)

Technical specifications:

• Model: Mobula8 1-2S 85mm Micro FPV
• Frame: 85mm
• Size: 120x120x50mm

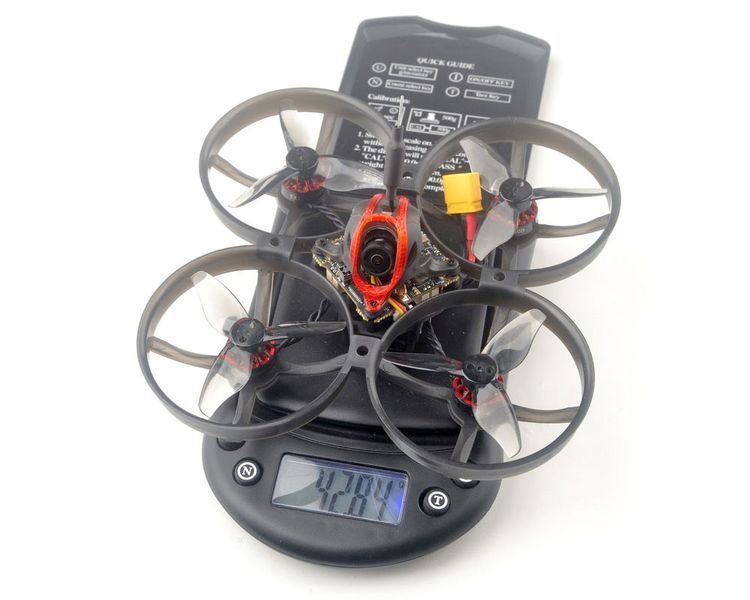

• Weight: 43g
• Receiver: PNP (without onboard receiver)

Motors:

• Type: EX1103 KV11000
• Configuration: 9N12P
• Stator Diameter: 11mm
• Stator Length: 3mm
• Shaft Diameter: Φ1.5mm
• Motor Dimensions (diameter*length): Φ13.5mm*15.5mm
• Weight: 3.8g
• Number of cells (Lipo): 1-2S

Propellers:

• Weight: 0.88g
• Material: PC
• Pitch: 2.3 inches
• Diameter of props: 52.17mm
• Center thickness: 5mm
• Diameter of center hole: 1.5mm

Camera:

• Image sensor: 1/3″ CMOS sensor
• horizontal resolution: 1200 TVL
• TV system: NTSC or PAL
• Image: 16:9 or 4:3
• Sync: Internal
• Electronic shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• SNR: >52dB (AGC OFF)
• Video Output: CVBS
• Lens: 1.8mm
• Minimum Illumination: [email protected]
• Auto Gain Control: YES
• WDR: global WDR
• DNR: 3D DNR
• Dimensions: 14*14mm (with bracket up to 19*19mm)
• Wide power input: 3.7-18V DC
• Weight: 2g

Complete:

• Mobula8 quadcopter
• EX1103 KV11000 brushless motors - 4 pcs
• Gemfan Hurricane 2023 three-blade propellers (4cw+4ccw)
• Caddx ANT 1200TVL camera
• Camera canopy 14x14 mm
• Screwdriver
