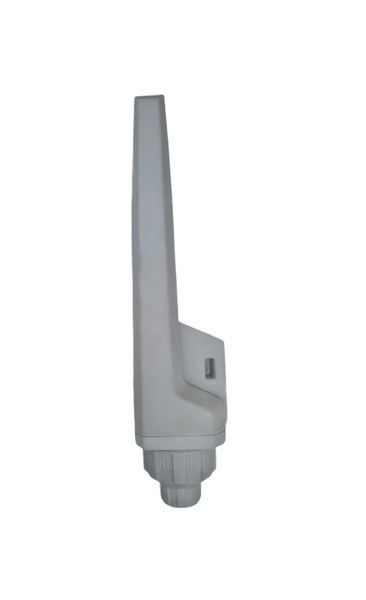

XAG FDS Docking Station — This is an interface control module for connecting and remotely controlling equipment in the XAG Smart Farm system. Acts as a link between:

• The IoT network

• physical equipment (pumps, inverters, and etc.)

👉 Allows you to start and control equipment through the XAG Farm app.

🔹 Main functions

• ⚙️ Pump and inverter control

• 🔌 Connecting equipment via RS485

• 📡 Integration into Smart Farm

• 📱 Remote control

• 🔄 Process Automation

🔹 How it works

• Receives commands from the application

• transmits them to the equipment

• controls start/stop

• sends the status back

👉 Functions as a controller and relay module.

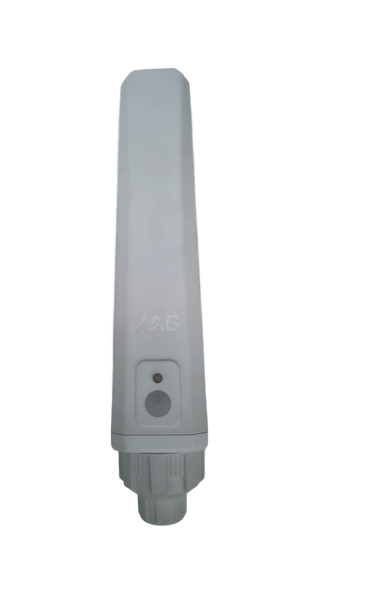

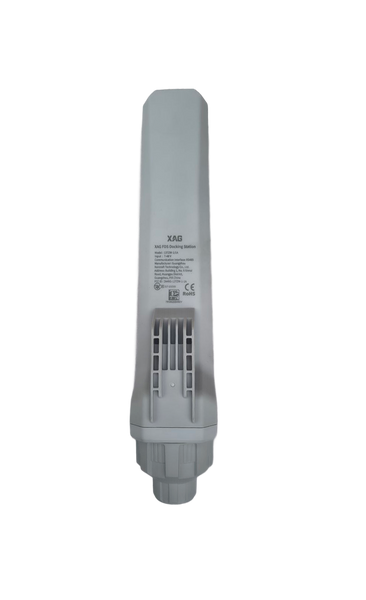

🔹 Construction

• Main unit

• Mounting

• Indicator

• Button

• Terminals:

  • power

  • RS485

  • inverter control

• Sealed connectors

🔹 Technical specifications

• Model: 13TZW-1/1A

• Dimensions: 357 × 104 × 123 mm

• Weight: ~0.38 kg

• Voltage: 7–48 V

• Interface: RS485

• Wi-Fi: 2.4 GHz (up to 300 m)

• Bluetooth: BLE 5.0 (up to 10 m)

• Protection: IP65

• Temperature: −10°C to +65°C

🔹 Purpose

• equipment management

• Irrigation automation

• Device integration

• Improving efficiency
