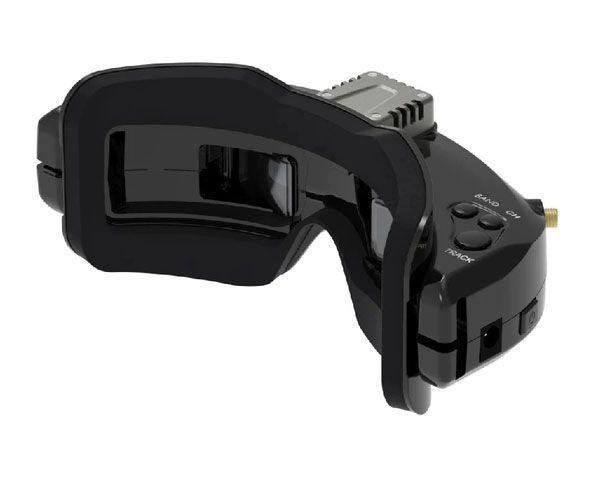

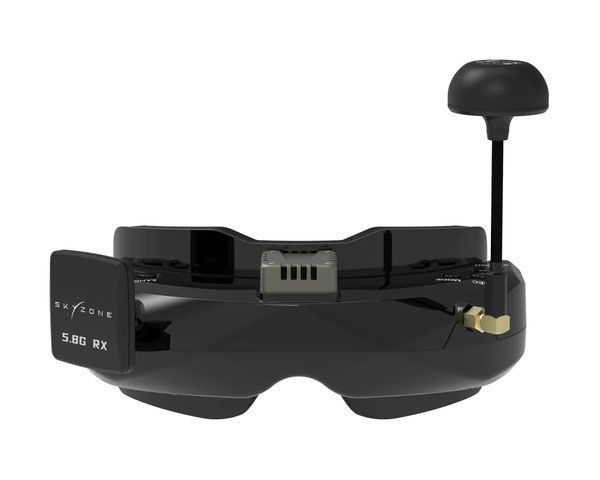

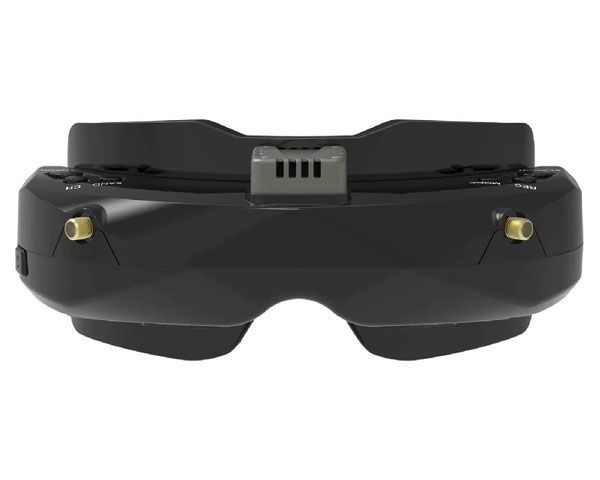

Skyzone SKY02O FPV Video Goggles (Black)

The Skyzone SKY02O is an updated version of the SKY02 goggles. The goggles are equipped with OLED displays with a resolution of 640x400p and a viewing angle of up to 29 degrees, offering incredibly vibrant colors and rich contrast.

One of the main advantages of the SKY02O goggles is the built-in Skyzone SteadyView video receiver module, which is comparable in performance and functionality to more expensive analogs.

The SKY02O goggles feature vibrant colors and a high contrast ratio, allowing pilots to see more details during a race.

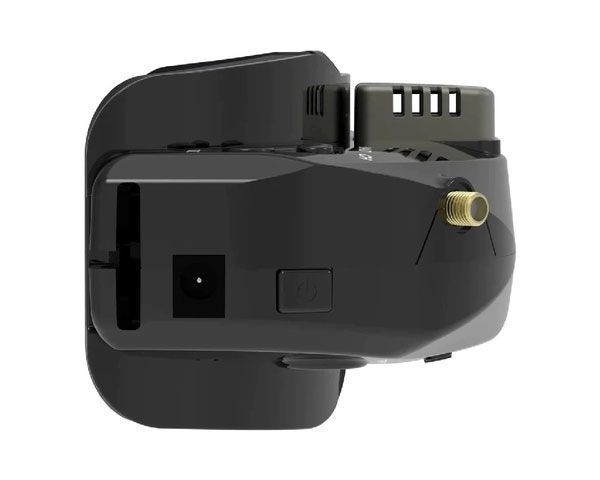

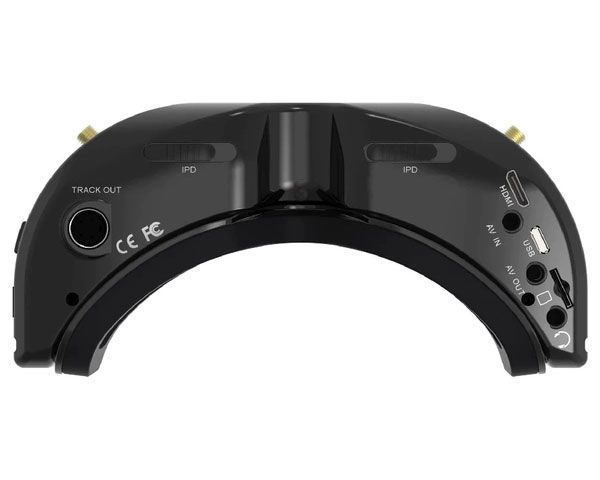

All interfaces are located together at the bottom of the goggles: DC input, AV input, Mini HDMI, USB-C, Head Tracker port, and SD card slot.

Features:

• Lightweight and compact design;
• OLED displays with a resolution of 640x400p;
• RapidMix technology combines two signals into one, creating an image More stable and clearer in challenging flight conditions;
• The SteadyView video receiver can be replaced with video receivers from other manufacturers;
• Built-in digital video recorder (DVR);
• The ability to select the video recording length in a single file;
• Built-in Head Tracker (head tracking);
• Built-in cooler prevents displays from fogging;
• Easy menu navigation using ribbed rotary wheels;
• Four image presets: standard, bright, saturated, soft;
• Three presets for individual settings: for indoor, outdoor, or variable weather;
• USB Type-C port for updating the video receiver firmware.

Technical Specifications:

• Display: OLED (x2);
• Display resolution: 640x400p;
• Viewing angle: 29°;
• Aspect ratio: 16:9/4:3 (switchable);
• TV format: NTSC/PAL (switchable);
• Focal length: -6 ~ +6 (adjustable);
• Intercenter distance (IPD) range: 59-69mm;
• SteadyView video receiver:
• Operating frequency: 5.8 GHz;
• Channels: 48;
• Antenna connector: SMA.
• DVR:
• Video recording: 30 fps;
• Video format: AVI (MJPEG codec).
• Compatible memory cards: microSD (up to 64 GB);
• Head Tracker: 3-axis accelerometer, 3-axis gyroscope;
• Interfaces: USB-C, DC IN, HT OUT, AV IN, Mini HDMI, 3.5 mm jack;
• Current consumption: 500 mA at 12 V;
• Operating voltage: 6.5-25.2 V (external battery);
• Color: Black;
• Dimensions: 167 x 70 x 79 mm;
• Weight: 210

Package Contents:

• Skyzone SKY02O Glasses
• Skyzone SteadyView Video Receiver Module
• SMA Patch Antenna
• SMA Omnidirectional Antenna
• Main Headband
• Face Mask (wide/narrow) - 2 pcs
• M'k Insert
• Head Tracker Cable
• AV Cable
• Power Cable XT60 (male) to DC 2.1x5.5mm (male)
• Case
• Manual in English
